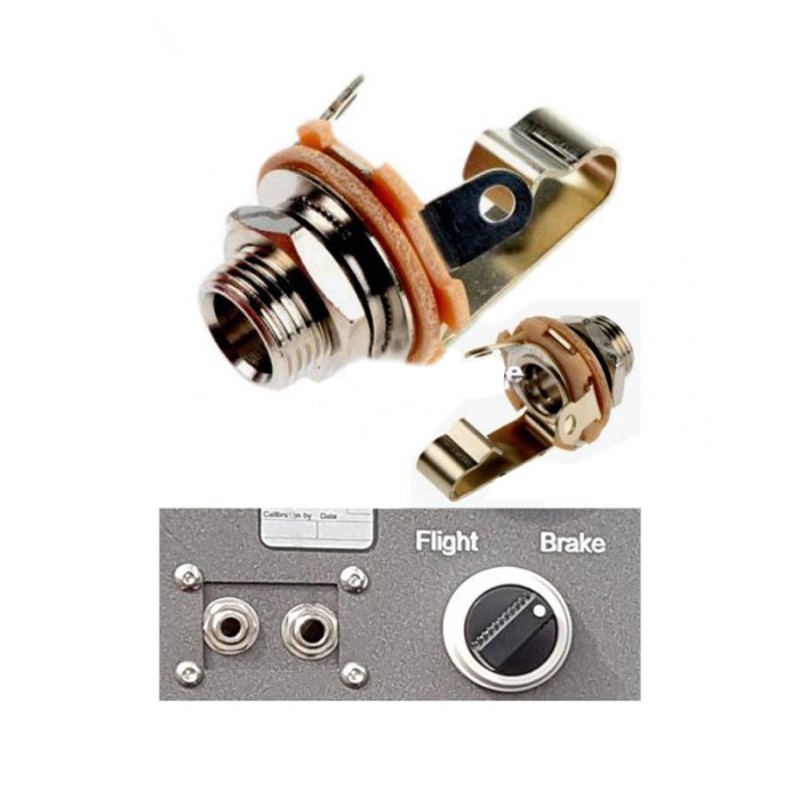

Aerospace Jack Female Ø 5.25 mm-Panel mount

Information :

• Small plug: Ø 5.25 mm for microphone
• Depth: 30 mm,
• Drilling Ø: 9 mm,
• Max. Ø behind partition: 25 mm.
• Type: Open structure jack
• Body orientation: Straight
• Contact plating: Nickel
• Current: 1A
• Voltage: 25 V c.c.
• Contact material: Copper alloy
• Minimum operating temperature: -20° C
• Maximum operating temperature: 65°C
• Number of poles/contacts: 3 (+micro, + mic Key and - ground)
• Panel mounting
• Solder socket
• Unshielded
• Silver
