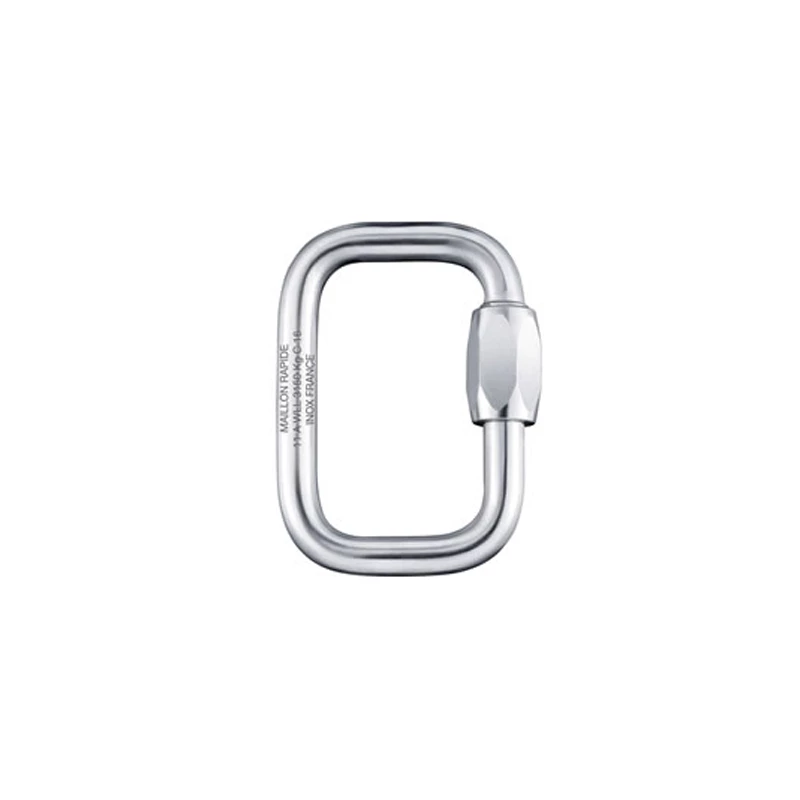

Square stainless steel 7 mm quick link

Connect your glider to your harness

This square stainless steel quick link is designed for anchoring your reserve parachute in free flight. It can also be used to attach your paraglider to your harness. Suitable for webbing up to 20mm.

Diameter (mm): 7

Inside height (mm): 52

Inside width (mm ): 34

Weight (g): 66

CU (WLL) : 625 kg

CR Rupture (kg) : 3125

Read moreShow less
€15.00 (tax incl.)
In stock, immediate delivery!
Quantity
Close
Reference:
100
Description


A solid square quick link

Use: For free-flight rescue parachute anchoring, or harness attachment (two-seater)

Self-certification with Working Load

  • CU (WLL): 625 kg
  • CR Rupture: 3125 Kg

    CU (WLL) = Working load

    CU (WLL) x 5 = Rupture load


    Material

    - Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
    - Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
    - Can be used in environments where type 18.10 steels reside, with the exception of those involving nitric acid.
    - Molybdenum content equal to 2/2.5, enabling it to be used in a wider range of environments than those in which type 18.10 steels are used, notably in the presence of sulfuric acid and chloride in marine environments.

    General aspect to be monitored

    quick link should be carefully checked at least once a year for corrosion, deformation and wear, as well as for operation. Any quick link that has been used to stop a violent fall must be replaced. Proceed in the same way in the event of uncertainty after checking the quick link.

    - Close by screwing on the nut to guarantee optimum safety and/or close with a wrench to the recommended tightening torque, the quick link becomes a permanent connector.Caution: no thread should be visible.
    - Payload engraved on each quick link.
    - All quick link must be inspected regularly. In case of doubt, it is the user's responsibility to replace it.
Read moreShow less
Product Details
100

Data sheet

Ø Quick link
7 mm
Form Quick links
Square
