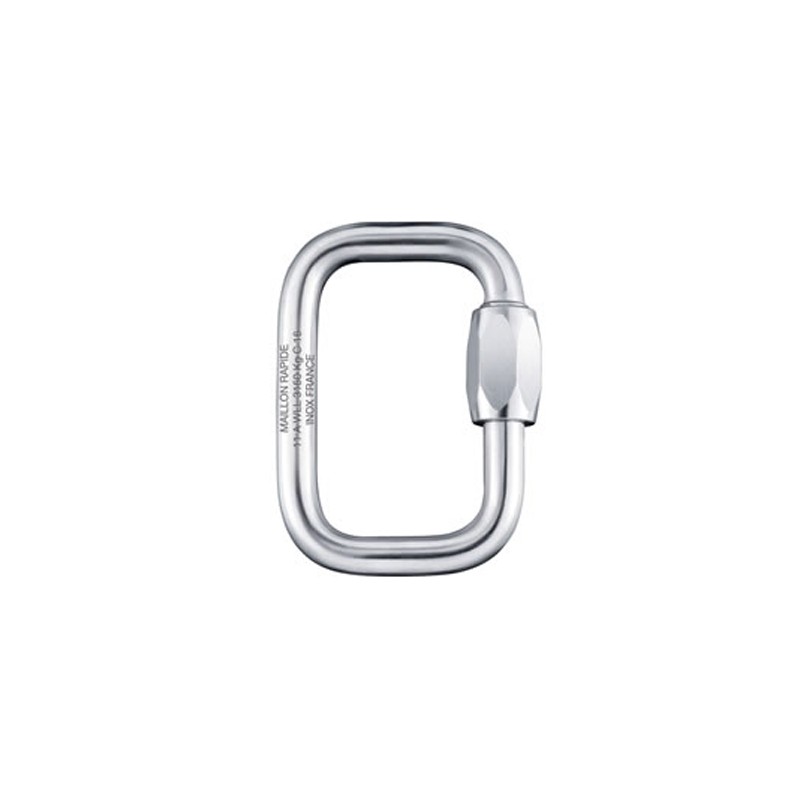

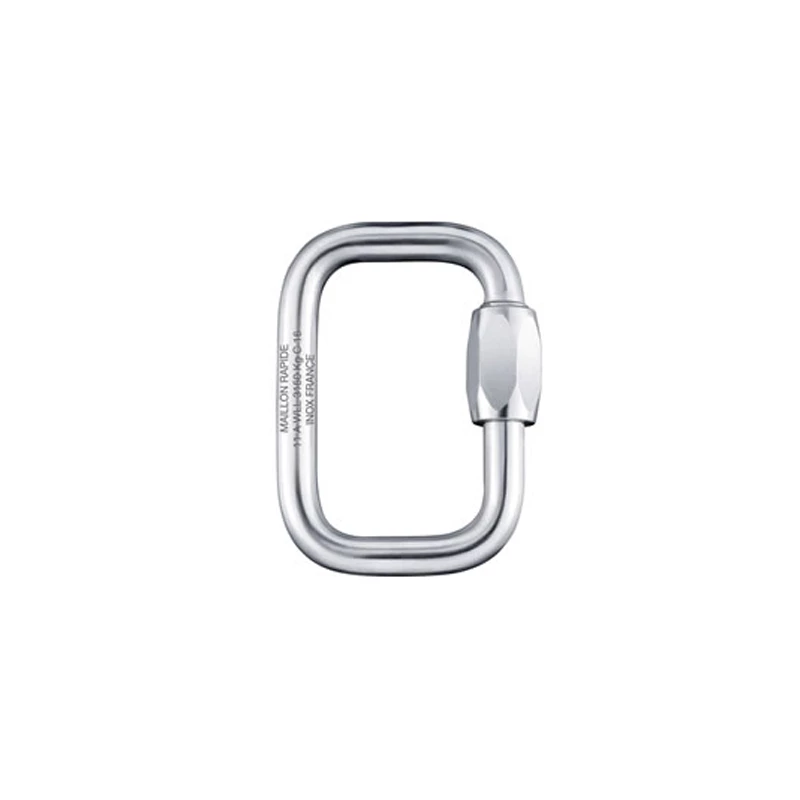

Square stainless steel 6 mm quick link

Connecting your wing to your harness

This square quick link is designed for anchoring the reserve parachute or attaching the paraglider to the harness.

Diameter (mm): 6

Inside height (mm ): 45

Inside width (mm ): 31

Max. for : 16.5 mm

Weight (g): 44

CU (WLL) : 450 kg

CR Rupture (kg) : 2250

Read moreShow less
€12.00 (tax incl.)
In stock, immediate delivery!
Quantity
Close
Reference:
101
Description

A strong square quick link

Use: For free-flight rescue parachute anchoring, or canopy attachment to harness

Self-certification with Working Load

CU (WLL) : 450 kg
CR Rupture : 2250 Kg

CU (WLL) = Working Load

CU (WLL) x 5 = Rupture Load

Material

  • Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
  • Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
  • Can be used in environments where type 18.10 steels are used, with the exception of those involving nitric acid.
  • Molybdenum content equal to 2/2.5 favors use in areas broader than those assigned to type 18.10 steels, notably in the presence of sulfuric acid and chloride in marine environments.

General aspect to be monitored

quick link should be carefully checked at least once a year for corrosion, deformation and wear, and for proper operation. Replace any quick link that has been used to stop a violent fall. Proceed in the same way in case of uncertainty after checking the quick link.
Tips

  • The quick link can be closed by screwing the nut on manually to guarantee optimum safety, or by tightening the nut with a wrench to the recommended torque. The quick link becomes a permanent connector.Please note: no threads should be visible.
  • Payload engraved on each quick link.
  • All quick link connectors must be inspected visually at regular intervals. In case of doubt, it is the user's responsibility to replace it.



Read moreShow less
Product Details
101

Data sheet

Ø Quick link
6 mm
Form Quick links
Square
Customers who bought this product also bought:
€29.00 (tax incl.)
Double bars for adapted speed Thespeed-bar rigid double bar can be positioned in a double function with a positioning angle. It is very easy to assemble and adjust. Rungs: 2 Rung length (cm ): 27 Halyard length (cm ):...
Out of stock
€30.00 (tax incl.)
Emergency risers for your belly container SOL Paragliders rescue ris ers are robust, compact and lightweight. Size (cm) : 43 Weight (g): 30
Out of stock
€30.00 (tax incl.)

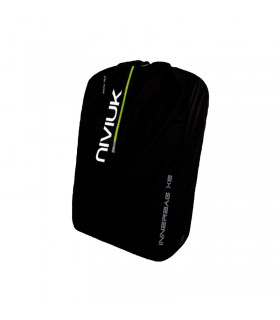

The Niviuk bag for your wing The Niviuk Inner Bag fits all paragliders, even tandem gliders. Sizes : XS - for skin and skate S - for twin skin and small sizes 20-21 M - for wing sizes 22-23-24-25-26 L - for...
