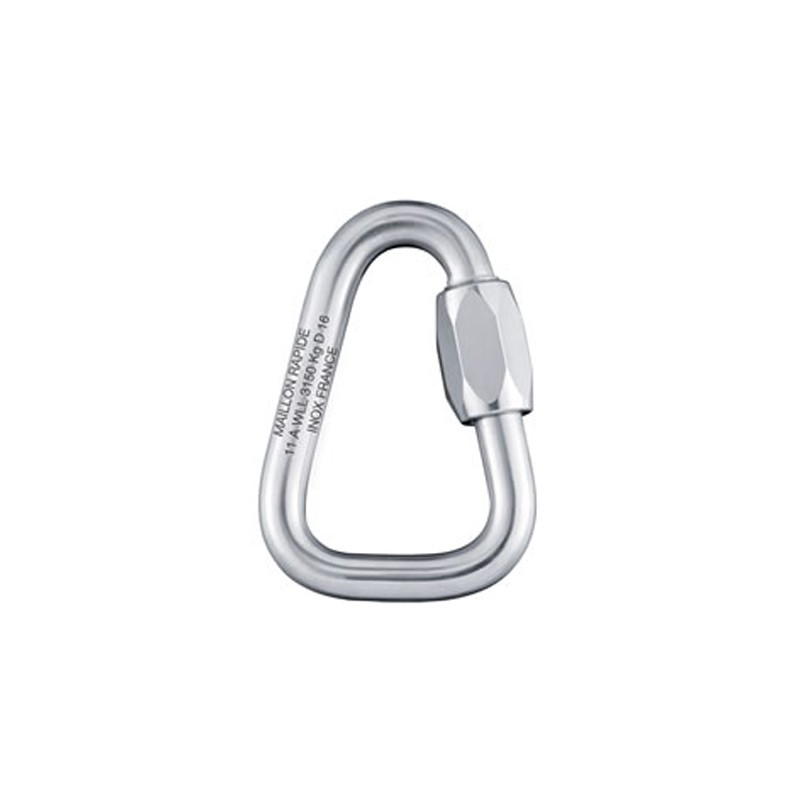

Triangle Inox 6 mm quick link

A strong, durable quick link

Connecting harness and canopy with Dyneema risers or for reserve parachutes

Diameter (mm): 6

Inside height (mm ): 44

Inside width (mm ): 35

Weight (g): 40

CU (WLL) : 450 kg

CR Rupture (kg) : 2250

Read moreShow less
$10.76 (tax incl.)
In stock, immediate delivery!
Quantity
Close
Reference:
111
Description

Connect your glider to your harness

Use: connecting harness and canopy equipped with Dyneema risers or for rescue parachutes

Self-certification with Working Load

CU (WLL) = Working Load

CU (WLL) x 5 = Breaking Load

Material

  • Stainless steel 316 L - Standard X2 Cr Ni - Mo 17-12-2 (1.4404)
  • Type 18/12 molybdenum steel with very low carbon content, protects against the risk of intergranular corrosion.
  • Can be used in environments where type 18.10 steels are used, with the exception of those involving nitric acid.
  • Molybdenum content equal to 2/2.5 favors use in areas broader than those assigned to type 18.10 steels, notably in the presence of sulfuric acid and chloride in marine environments

General appearance

quick link should be carefully checked at least once a year for corrosion, deformation and wear, and for proper operation. In the event of uncertainty after checking the quick link, systematically replace it.

Technical specifications

peguet-triangle-image.jpgTips

  • The quick link can be closed by screwing on the nut to guarantee optimum safety, or by tightening the nut with a wrench to the recommended torque, transforming it into a permanent connector.Please note: no threads should be visible.
  • Payload engraved on each quick link.
  • All quick link connectors must be inspected visually at regular intervals. In case of doubt, it is the user's responsibility to replace it
Read moreShow less
Product Details
111

Data sheet

Ø Quick link
6 mm
Form Quick links
Triangles
Customers who bought this product also bought:
$101.68 (tax incl.)

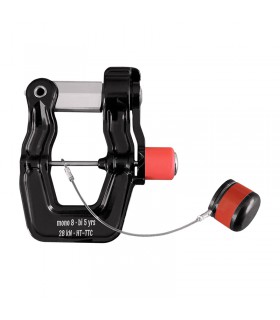

The efficient, robust release carabiner When the rescue parachute is pulled, the paraglider can interfere with its deployment or alter its stability. All these factors influence the sink rate advertised by the...
