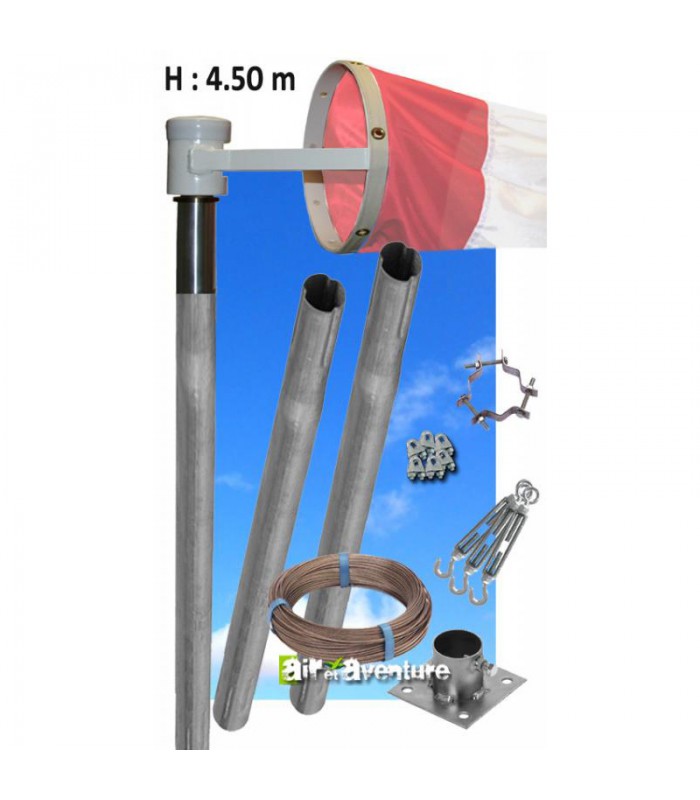

Full Galvanized Mast 50 mm x 4.50 m with Circle Weathervane

Complete set of mast + ball-bearing-mounted Alu weathervane

Robust, professional quality!

Galvanized inside and out

  • Height: 4.50 meters in 3 segments
  • Ø Mast: 50 mm
  • Weathervane Ø: 30 cm, 40 cm, 50 cm, 60 cm

Supplied with : Ready to install with 1 collar, 1 base plate, 3 cable stays, 3 turnbuckles and 6 cable clamps, without windsock

Use: Private airfields, Microlight terrain, Paragliding, Factories, Construction sites, safety prevention on certain Seveso-classified hazardous sites.

Weight: approx. 13 kg complete with 30 cm Ø weathervane

Read moreShow less
€580.00 (tax incl.)
In stock, immediate delivery!
Sizes
Close
Reference:
1523-40
Description

A complete professional-quality kit

This complete mast kit, with its integrated weathervane, is ready to install.
This is an excellent compromise at a very attractive price and can be permanently installed
This system is suitable for windsocks with 30-40-50-60 cm diameter eyelets
This kit consists of :

A hot-dip galvanized mast:

This type of mast is highly resistant
It is designed for all types of windsock
Recommendedmaximum diameter for the windsock: 60 cm
Mast height: 4.50 meters in 3 segments.
Can optionally be supplied in 6-meter lengths

Characteristics:

  • Diameter: 50 mm
  • Hot-dip galvanized
  • Thickness: 1.5 mm
  • Weight: 8 kg

Aluminiumweathervane

Integrated directly into the top of the mast.
4 circle diameters:

  • Diameter: 30 cm
  • Diameter: 40 cm
  • Diameter: 50 cm
  • Diameter: 60 cm

Features :

  • Composed of a Rond Alu spigot Ø50 mm
  • Male spigot with cap to seal the junction between mast and frame
  • Mounted on double ball bearings
  • Manufactured to wind-resistance standards
  • White epoxy coating


support_girouette-complet
This ready-to-install set is sold with:
1 wind vane, 1 mast, 1 base plate, 1 collar, 3 cable stays, 3 turnbuckles, 6 cable clamps
The windsock not supplied with this set is optional and should be chosen according to the diameter of the wind vane
Please note: this model cannot be fitted with wind vane or masthead lighting
1-year warranty
Not available from La Poste collection points
accessoires_mat_image

Read moreShow less
Product Details
1523-40

Data sheet

Windsock support
Complete kits
